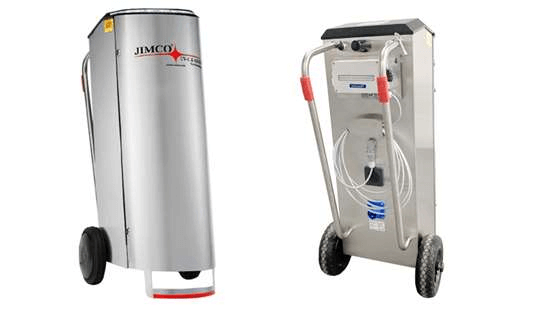

Jimco FLO-D Mini Mark 2 automated disinfection system

Jimco FLO-D Mini Mark 2 automated disinfection system

Efficient disinfection, without chemicals or water with a kill rate of up to 99.9%

JIMCO FLO-D MINI MARK 2 disinfection systems is an automated solution for disinfection of  surfaces and facilities by using combined UV-C & Ozone technology, to eliminate microorganisms and odors, a kill rate of 99.9% of all microorganisms may be achieved depending on the applied UV-C dosage,



​The FLO-D MINI MARK 2  is equipped with PLC-control with datalogging, special UV-C sensors developed by JIMCO, to ensure that the UV-C light is 100% effective to surface disinfection.​ Ensuring efficiency as well a time and resources required.

Jimco disinfection for your benefit

Applications & Users

  • Cold storage
  • Composting plants
  • Damage recovery service
  • Food processing plants
  • Garbage sorting facilities
  • Hatcheries
  • Hospitals
  • Livestock buildings disinfection
  • Pharmaceutical Production
  • Reefer container disinfection
  • Seed Disinfection

And many more………….

The Technology behind Jimco FLO-D Mini Mark 2 automated disinfection system

The FLO-D Mini Mark 2 is using Jimco UV-C technology to produce Ozone by capturing the air in the room through the system’s UV-C chamber where oxygen O2 contained in the air is converted to ozone O3. The ozone then blows out and spread into the room eliminating bacteria and virus.



Depending on the calculated UV-C dosage, a kill rate of 99.9% of all microorganisms may be achieved.



Ozone treatment typically last 3 hours with a FLO-D Mini Mark 2 which will eliminate bacteria and virus as well as reduce the amount of organic matter in which bacteria thrive and reproduce.



The process is controlled by the Jimco PLC-control and the special UV-C sensors developed by JIMCO, ensure that the UV-C light is 100% effective to surface disinfection as well as Ozone sensors measures the level of Ozone injected to the room.



The calibrated amount of OZONE created by the specially designed and controlled UV-C lamps destructs the structure of and kills viruses, bacteria, fungi, and mold.

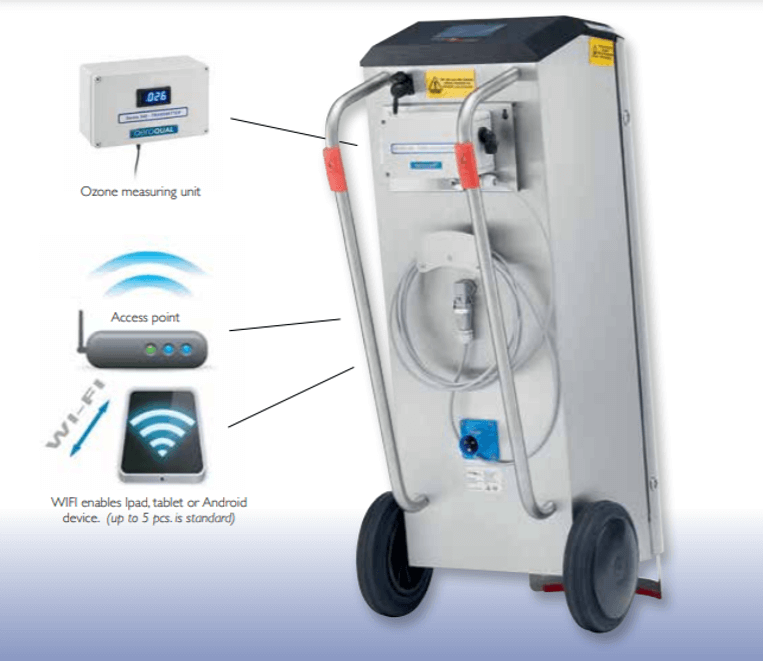

Function Jimco FLO-D automated disinfection system

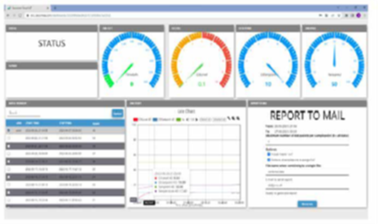

  • Wi-Fi enabled access point for wireless connection by smartphone/tablet. (tablet, iPhone etc.).

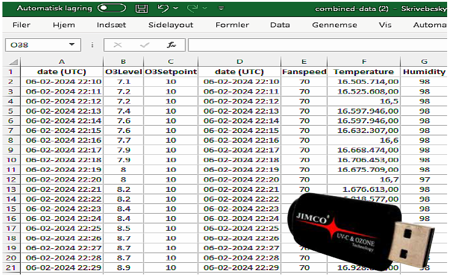

  • Data logging built in for recoding of treatment area, time and ozone levels

  • Standard 4 operation modes, Manual on/off, timer mode, Ozone Level and Weekly program

  • Include Ozone sensor for Ozone level measurement

Download Brochures and Award

Download Test certificates

Other Jimco disinfection solutions

Disinfection systems for air and surfaces

Jimco FLO-D automated disinfection system

Efficient disinfection, without chemicals or water with a kill rate of up to 99.9%

JIMCO FLO-D disinfection systems is an automated solution for disinfection of  surfaces and facilities by using combined UV-C & Ozone technology, to eliminate microorganisms and odors, a kill rate of 99.9% of all microorganisms may be achieved depending on the applied UV-C dosage,



​The FLO-D is equipped with PLC-control, special UV-C sensors developed by JIMCO, to ensure that the UV-C light is 100% effective to surface disinfection.​ Ensuring efficiency as well a time and resources required.



The FLO-D is available in a mobile as well as fixed versions to meet customer requirements.

Indoor Air purifiers & odor control

Healthy indoor climate is essential for people’s wellbeing, in today’s environment it is not enough to ventilate well to remove Co2, it is also necessary to reduce the exposure to virus, bacteria, mold spores and odors to ensure a safe environment.



Jimco a/s is our technology partner to provide solutions for better indoor climate. Jimco technology can reduce virus, bacteria, mold spores and odors up 99.84%

We provide solutions for private houses as well as industrial facilities, commercial buildings and leisure facilities.

Air purifiers for indoor spaces

Air and surface cleaning without filters or chemicals
